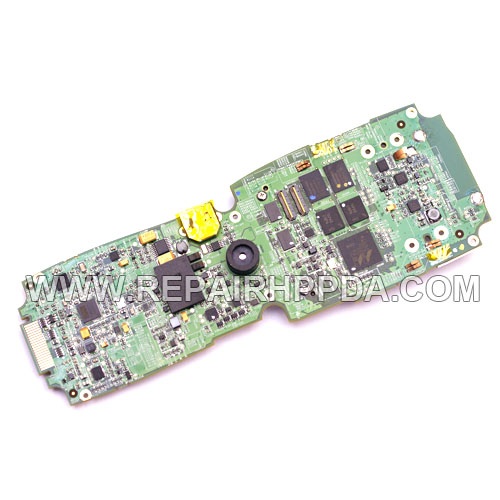

Motherboard (5300SF ) Replacement for Honeywell LXE MX8

Motherboard (5300SF ) Replacement for Honeywell LXE MX8


Product Configuration Matrix - LXE MX8

Scanner Options - M X 8 A (X) x x x x x x x x x x
0    No Internal scanner
2    Short Range Laser, SE955I
3    2D Area Imager, 5300
4    1D Linear Imager, EV-15
5    Base Laser

Keyboard Options - M X 8 A x (X) x x x x x x x x x
B     32 Key alpha-mode numeric, ANSI overlay
C     32 Key numeric with triple-tap alpha, ANSI overlay

Radio Options - M X 8 A x x (X) x x x x x x x x
0    Batch - No Radio
1    802.11b/g (2.4GHz)
2    802.11a/b/g (2.4GHz & 5GHz)
3    802.11b/g (2.4GHz) + Bluetooth
4    802.11a/b/g (2.4GHz & 5GHz) + Bluetooth

Antenna Options - M X 8 A x x x (X) x x x x x x x
A     No Antenna
B     Dual internal 802.11b/g (2.4GHz) antennas. Supports antenna diversity. Supports 802.11b/g only.
C     Dual internal 802.11a (5GHz) antennas. Supports antenna diversity. Supports 802.11a only.
D     Dual internal - (1) 802.11a (5GHz) antenna and (1) 802.11b/g (2.4GHz) antenna. Does not support antenna diversity.

Base, Memory, I/O Options - M X 8 A x x x x (X) x x x x x x
1    520MHz PXA270 128MB RAM, 128MB Flash
4    520MHz PXA270 128MB RAM, 1.1GB Flash (128MB on-board Flash plus 1GB mini-SD Flash)

Display Options - M X 8 A x x x x x (X) x x x x x
B     2.8 in/7.1 cm QVGA color display with touch screen

OS & Language Options - M X 8 A x x x x x x (X) x x x x
1    Windows CE 5.0 Pro US English
2    Windows CE 5.0 Pro US English + Java
8    Windows CE 5.0 Pro Localized Traditional Chinese
9    Windows CE 5.0 Pro Localized Simplified Chinese
A     Windows CE 5.0 Pro Localized Japanese
B     Windows CE 5.0 Pro Localized Korean
D     Windows CE 5.0 Pro Localized Spanish
K     Windows Mobile 6.1.5

Application Options - M X 8 A x x x x x x x (X) x x x
A     No Application
B     RFTerm Windows CE Terminal Emulation ANSI VT220, TN5250, TN3270
C     CETerm Browser Client for WebSAPConsole, NetWeaver Mobile - Always Connected, ITSmobile + TE
E     License - Wavelink TE + 1 year maintenance contract eligible
F     License - Wavelink TE + 3 year maintenance contract eligible
G     License - Wavelink TE + 5 year maintenance contract eligible
H     License - Wavelink Industrial Browser + 1 year maintenance contract eligible
I     License - Wavelink Industrial Browser + 3 year maintenance contract eligible
J     License - Wavelink Industrial Browser + 5 year maintenance contract eligible
K     License - Wavelink TE + Browser + 1 year maintenance contract eligible
L     License - Wavelink TE + Browser + 3 year maintenance contract eligible
M     License - Wavelink TE + Browser + 5 year maintenance contract eligible

Custom Options - M X 8 A x x x x x x x x (X) x x
0    No Custom Option
A     Stay-Linked Client

Country Code - M X 8 A x x x x x x x x x (X X)
ET     ETSI Country Approvals
US     UNITED STATES
AR     ARGENTINA
AU     AUSTRALIA
BO     BOLIVIA
BR     BRAZIL
CA     CANADA
CL     CHILE
CN     CHINA
CO     COLOMBIA
CR     COSTA RICA
DO     DOMINICAN REPUBLIC
EC     ECUADOR
GT     GUATEMALA
HN     HONDURAS
HK     HONG KONG
HU     HUNGARY
IS     ICELAND
ID     INDONESIA
JM     JAMAICA
JP     JAPAN
KR     KOREA, REPUBLIC OF
LI     LIECHTENSTEIN
MY     MALAYSIA
MX     MEXICO
NZ     NEW ZEALAND
NI     NICARAGUA
PA     PANAMA
PE     PERU
PH     PHILIPPINES
PR     PUERTO RICO
SG     SINGAPORE
TW     TAIWAN
TH     THAILAND
TR     TURKEY
UY     URUGUAY
VE     VENEZUELA
VN     VIETNAM
